Toshiba NB100-12A 8.9" Wide Atom 1.60GHz 1GB 120GB WiFi Webcam XPH - Brighter Silver

Price £246.11 + VAT (£295.33 inc VAT)

 #EMAIL_THIS_PAGE#
TOSNOT02D

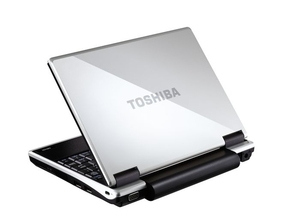

Image for illustration only. Specifications cannot be guaranteed.

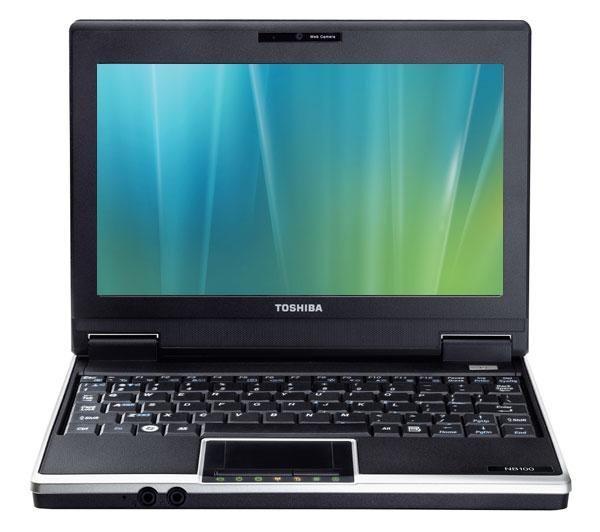

Click to Enlarge Image		NB100-12A - Intel® Atom™ processor N270(1.60GHz)/XP Home Edition/1024MB/120GB/8.9" WSVGA/WiFi 802.11bg/WebCam
Manufacturer Code
Technical details
Drive device, buffer size8192 MB
Colour of productBrighter Silver
Fixed netwerk speed10BASE-T/100BASE-TX Kbit/s
Battery recharge time (off)4 h
Battery recharge time (on)4 - 10 h
L2 cache512 KB
Storage capacity1.024 GB
Pointing deviceTouch Pad
BIOS manufacturerInsyde™
Operating vibration with/without CD-ROM drive installed0.5G (0.5G) G
Operating shock with/without CD-ROM drive installed10G (10G)
Bundled hardwareAC adaptor
Caseworkpolycarbonate ABS
BIOS Plug and Play supportY
BIOS VESA supportY
System management BIOSY
Expansion type1 x memory slot
Volume dialYes (digital)
Special featuresintegrated microphone for Voice over IP; integrated VGA Web Camera for Video over IP; Enhanced Intel® SpeedStep® Technology; HD Audio support; SM BIOS compliant; ENERGY STAR qualified computer
Toshiba EasyMediaBuilt-in camera & microphone; Toshiba ConfigFree™; Integrated Bridge Media Adapter; Diversity Antenna; McAfee® Internet Security Suite - Toshiba Edition; USB Sleep-and-Charge ; Smart Display Support
Wireless communication versionXB63L Mbit/s
Operating elevationm
Processor
Processor clock speed1600 MHz
Processor familyIntel Atom processor N270
Processor front side bus533 MHz
ChipsetMobile Intel® 945GSE Express Chipset
L2 cacheMB
Processor manufacturerIntel®
Motherboard manufacturerIntel®
Disk drive
Total storage capacity120 GB
Hard disk interfaceSerial ATA 2
Hard disk number of heads2
Hard disk rotational speed5.400 RPM
Hard disk desktop or notebook?notebook
Hard disk number of plates1
Hard disk height9.5 mm
Memory
Internal memoryMB
Internal memory typeDDR2 RAM (667 MHz)
Maximum internal memory1.024 GB
Internal memory expansion module sizes512, 1.024 MB
Maximum internal memoryMB
Display
Display diagonal8.9 "
DisplayToshiba TruBrite® WSVGA TFT display with LED backlight
Display response rise/fall12/18 ms
Pixel pitch0.1905 x 0.189 mm
Display resolution1.024 x 600 pixels
Contrast ratio (typical)300:1
Display brightnesscd/m²
LCD brightness levels 1-840, 60, 80, 100, 120, 140, 160, 180 cd/m²
System requirements
Compatible operating systemsGenuine Windows® XP Home Edition (Toshiba-Recovery DVD)
Audio
Audio system full duplexY
Audio systemRealtek ALC-262-VD0
Audio compression formats24-bit stereo
Number of built-in speakersbuilt-in stereo speakers
Audio system maximum sampling rate192 kHz
Audio system manufacturerToshiba Bass Enhanced Sound System
Connectivity
Wireless communication manufacturerAtheros
Wired communication connectorRJ-45
Wired communication featuresWake-On-LAN, remote boot
Wired communication manufacturerRealtek
I/O ports1 x headphone (stereo); 1 x external microphone; 1 x RJ-45; 1 x external monitor; 1 x DC-in; 3 (Left 1, Right 2) x USB 2.0 Sleep-and-Charge; 1 x integrated VGA Web Camera; 1 x built-in microphone; 1 x 4-in-1 Bridge Media slot (supports SD™ Cards up to 16 GB, Memory Stick® up to 256 MB, Memory Stick Pro™ up to 2 GB and MultiMedia Card™ up to 2 GB)
Wired communication chipsetRTL8102E
Weight & dimensions
Weight>0.999 g
Dimensions W x D x H225 x 190.5 x 29.5 (front) / 33 (rear) mm
AC adapter weight250 g
Energy management
Battery technologylithium-ion
Battery performance38 Wh (5200) mAh
Battery typemain
Battery lifeup to 3h50min (Mobile Mark™ 2007) h
Battery life power offh
Battery life power onh
BIOS advanced power managementN
BIOS ACPIY
AC adapter power dissipation65 W
AC adapter output current3.42 A
AC adapter output voltage19 V
AC adapter frequency50, 60 Hz
AC adapter input voltageautosensing AC adapter (100/240) for worldwide usage V
Environmental conditions
Non-operating relative humidity (non-condensing)10-95% %
Storage temperature range (T-T)-20 - 60 °C
Operating relative humidity range20-80% %
Operating maximum thermal gradient15°C/hour °C/hr
Operating temperature range (T-T)5 - 35 °C
Non-operating vibration with/without CD-ROM drive installed1G (1G)
Non-operating shock with/without CD-ROM drive installed60G (60G)
Non-operating maximum thermal gradient°C/hr
Non-operating altitude0 - 10.000 m m
Operating altitude0 - 3.000 m
Keyboard
Keyboard key stroke1.5 mm
Keyboard key pitch15.90 x 13.60 mm
Keyboard function keys11
Keyboard euro keyY
Windows keysY
Keyboard number of keys80
Networking
Wireless technologyWireless LAN
Wireless network support802.11b/g KB/s
Wireless compliancyWi-Fi®
Networking topologyFast Ethernet LAN
Video
Graphic adapterMobile Intel® GMA 950
Maximum graphic adapter memory< 224 graphics @ 512 system MB
Graphics adapter memory typeshared
Graphics adapter manufacturerIntel®
Internal video mode, resolution1.024 x 600 pixels
External video modes non-interlaced resolution with max. refresh rate1.600 x 1.200 pixels
External video modes max. refresh rate120 Hz
External video modes max. resolution2.048 x 1.536 pixels
External video modes maximum refresh rate (non interlaced)120; 75; 85; 60 Hz
External video adapter resolution640 x 480; 2.048 x 1.536; 800 x 600; 1.024 x 768; 1.280 x 1.024; 1.400 x 1.050; 1.440 x 900; 1.600 x 1.200; 1.680 x 1.050; 1.920 x 1.200; 1.920 x 1.440
3D graphics acceleratorY bit
2D graphics acceleratorY
Security
Security featuresmain battery pack (by sliding latch); user password; slot for Kensington Cable Lock; supervisor password; HDD password on request; main memory (by screw); main hard disk (by screw)
Certificates
CertificationS.M.A.R.T.
Operating system/software
Bundled softwareChicony Camera Assistant Software; McAfee® Internet Security Suite - Toshiba Edition (includes free Internet updates for 30 days); Toshiba DVD Player; Toshiba User's Manual; Toshiba Disc Creator; Connectivity Doctor; ConfigFree™; Toshiba utilities and drivers; Microsoft® Works, Microsoft® Office Home and Student 2007 (free 60-day trial)
